Jiangsu Haiheng Buiding-Materials Machinery Co.,Ltd
| Tipo de Pago: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Cantidad de pedido mínima: | 1 Set/Sets |
| transporte: | Ocean |
| Hafen: | Shanghai |
Sombra:
Modelo: HH-GH001
Marca: Haiheng
| Unidades de venta | : | Set/Sets |
| Tipo de paquete | : | Paquete desnudo |
The file is encrypted. Please fill in the following information to continue accessing it

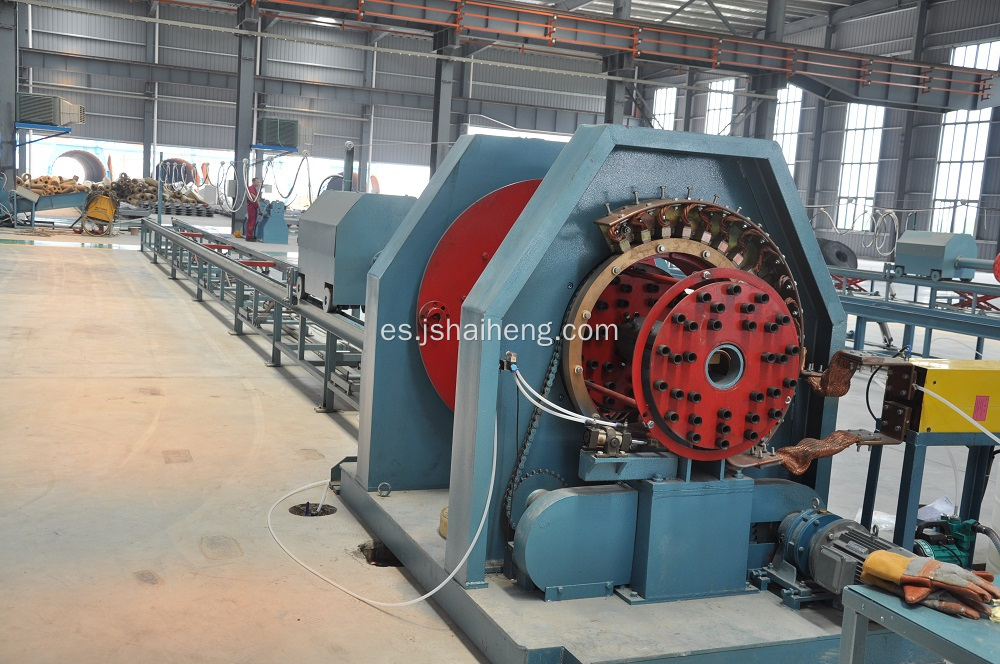

Máquina de conformado y soldadura de jaula de alambre.
La máquina de soldadura de conformación de jaula de pilotes es un equipo profesional completamente automático para producir jaulas de acero reforzado con pilas de hormigón. La resistencia de soldadura de todo el equipo es pequeña, la conformación es rápida, la estructura es razonable, el mantenimiento es simple. Combinado con el moderno control de conversión de frecuencia y la interfaz hombre-máquina, es eficaz para garantizar la calidad estable y confiable de la jaula de acero.
Los parámetros técnicos:
|
No. |
Item |
Specification |
|
1 |
cage welding dia. |
ø300 .ø400. ø500. ø600 |
|
2 |
length of cage welding |
7M-15M(special cases is extended to 45M) |
|
3 |
The number of longitudinal reinforcement bar |
6.7.10 or 7.10.12.14 etc.(according to user's requirement) |
|
4 |
Longitudinal reinforcement bar diameter |
ø7.1.ø9.0.ø10.7 |
|
5 |
Ring reinforcement diameter |
ø4- ø6
|
|
6 |
The cage body pitch |
0-100mm
|
|
7 |
Pulling speed |
MAX7500mm/min |
|
8 |
Driving Power |
8.4KW
|
|
9 |
Welding power |
300KVA |
|
10 |
Rotational speed of main engine |
0-64r/min |
|
11 |
Welding manner |
ERW(electric resistance welding)
|
|
12 |
Control manner |
Automatic control
|
|
No. |
Item |
Technical specification |
|
13 |
Welding material |
Any steel with a carbon content of less than 0.20% |
|
14 |
Loss of solder strength |
≤5% |
|
15 |
Tension or shear at the solder joints |
≥200KG |
|
16 |
Welding transformer cooling mode |
wind cooling,self-cooling |
|
17 |
welder power supply |
380V±5% 50HZ |
|
18 |
environment temprature |
-5℃--+35℃ |
|
19 |
Relative humidity |
＜85% |
|
20 |
welder weight |
≈5T |
Si tiene alguna pregunta, por favor contáctenos directamente. Le damos la bienvenida a visitar nuestra fábrica. Para consultas, envíenos un correo directamente.
